Caratteristiche

Specificazioni

Applicable Industries: Building Material Shops, Food & Beverage Factory, Energy & Mining

Gearing Arrangement: Helical

Output Torque: 277N.m-1194N.m

Input Speed: 1400rpm

Output Speed: 10~400r/min

Ratio: 5,13,20

Color: Customer Requirement

Input Form: Keyed Solid Shaft Input

Output Form: Keyed Hollow Shaft Output

Housing material: High-strength Ductile Iron

Gears: Helical Involute Gears

Application: Conveyor Belt and Pulley Drive

Mount Position: Shaft Mounted

Warranty: 1 Year

Certificazione: ISO9001

Informazioni di base

Certificazione: ISO9001

Termini di pagamento e spedizione

Packaging Details: Plastic Bags, Plywood Cases

Supply Ability: 3000 Piece/Pieces per Month

Descrizione di prodotto

Hot product


F series gearbox	S series reduce gearbox	R series speed gearbox	K series gear box

Product Description

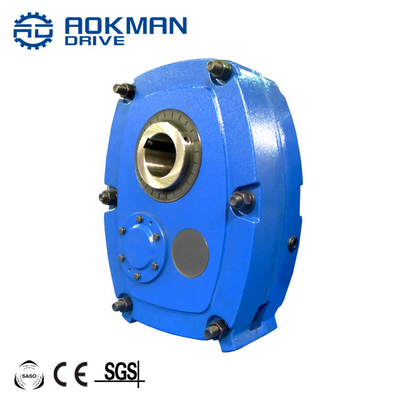

High-Strength SMR shaft mounted gearbox reducer for bucket elevator and chain conveyor

Features:
1. High strength of gear box, gears and shafts, sturdy and durable
2. 2 metric output shaft bore diameters(Standard and Optional)
3. Optional backstop to prevent backdriving. Backstop is not recommended for the gear ratio 5
4. Double lips skeleton oil seal combines the functions of seal and dust-proof
5. Widely used in belt conveyor and pulley drive system

Models	Output Shaft Bore		Max. Torque*	Nominal Ratio
Models	Standard	Optional	Max. Torque*	Nominal Ratio
SMR-B	30mm	40mm	277N.m	5


SMR-C	40mm	50mm	468N.m
SMR-D	50mm	55mm	783N.m	13
SMR-E	55mm	65mm	1194N.m
SMR-F	65mm	75mm	1881N.m
SMR-G	75mm	85mm	2970N.m
SMR-H	85mm	100mm	4680N.m
SMR-J	100mm	120mm	7449N.m	20

Packaging & Shipping

Aokman speed gear reducer

Packing Images of Helical Gear Speed Reducer

Inner Packing:Plastic Bags Plywood Cases

Outer Packing: Plywood Cases or Wooden case;
Shipment: 15-20 days upon receiving the deposit.
